Manual for BC-ANT-SERIAL

[Caution]
This page explains the details of the discontinued model of BC-ANT-SERIAL. If you are looking for the technical information of the present ANT module, please look at this page. Thank you.

1. Overview

BC-ANT-SERIAL is an ANT wireless communication module. ANT is a low-power data wireless communication network protocol, which runs in 2.4GHz ISM band. ANT can handle form a simple peer-to-peer to a complex fixed mesh topologies. ANT provides hardware solutions for flexible and adaptive network operation and cross-talk immunity.
This module has been certified by the Japanese regulatory agency and has received Technical Conformity. The label of the certification number is put on the module. It is illegal if you remove the label and put it on another device. Even though you remove and damage the label and use the device, it will be considered as illegal. If you modify the module, such as replacing to its antenna or changing its high frequency circuit, Technical Conformity is void.


2. How to Connect to its Host CPU

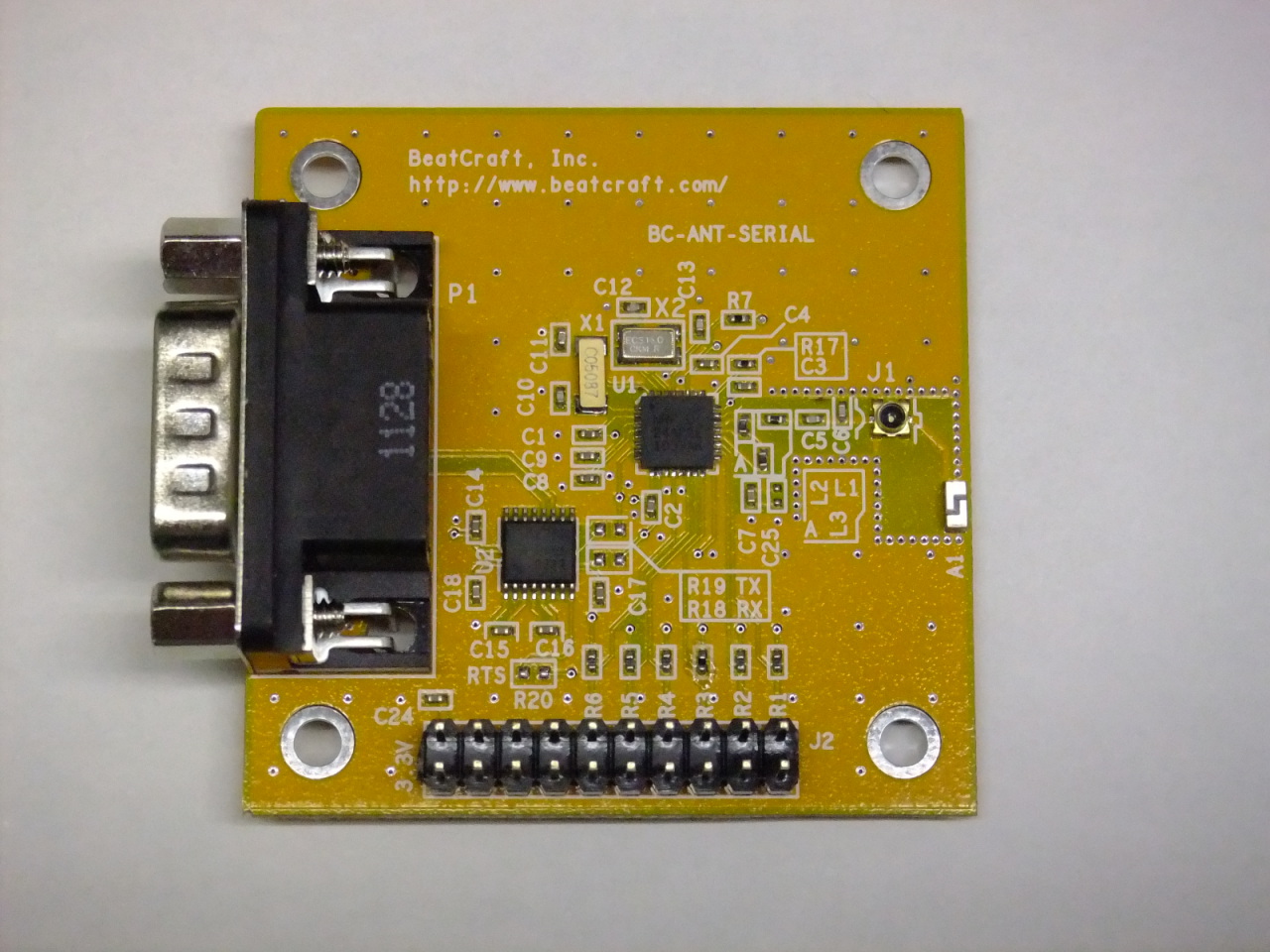

This module can communicate to a microcontroller for an embedded system or a PC with RS-232C of TTL (1.9 ~3.6V single-end) level.

2.1 How to connect TTL (single-end) with a microcontroller

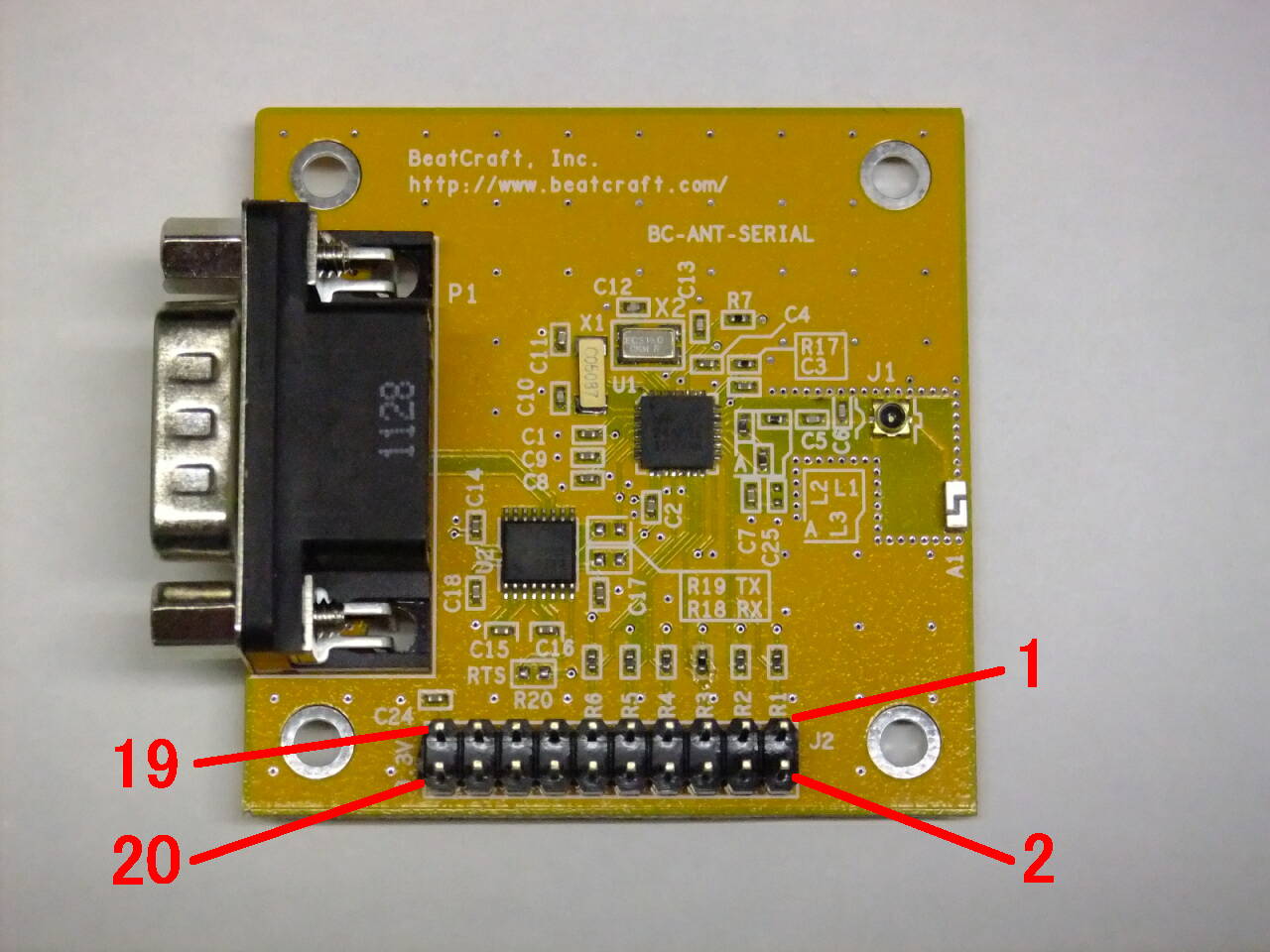

J2 terminal (20-pin) of this module is attached to a connecting cable. For the pin assignment at the terminal, please look at the table below.

ItemMinimumStandardMaximumUnit
Power Supply Voltage (VDD)1.93.03.6V
Input Voltage at H level0.7 x VDDVDDV
Input Voltage at L levelVSS (GND)0.3 x VDDV
Output Voltage at H levelVDD 0.3VDDV
Output Voltage at L levelVSS (GND)0.3V

J2 Pin Assignment

NoType of SignalNoType of Signal
1RESET2GND
3BR24GND
5SLEEP6GND
7BR18GND
9BR310GND
11SUSPEND12GND
13RXD14NC
15TXD16NC
17RTS18NC
19VDD20GND

Serial Communication is specified as 8bit length, no parity, 16bit stopbit length, and hardware flow. The communication speed is determined by pin-assignments patterns of BR1, BR2, and BR3. Please look at the table below for the details.

BR3BR2BR1Communication Speed
0004800
01019200
00138400
01150000
1001200
1102400
1019600
11157600

[Caution]
19200bps or slower communication speeds is highly recommended. AT 57600bps, the internal chip may drop few command lines because it cannot keep up its processing speed with communication speed.

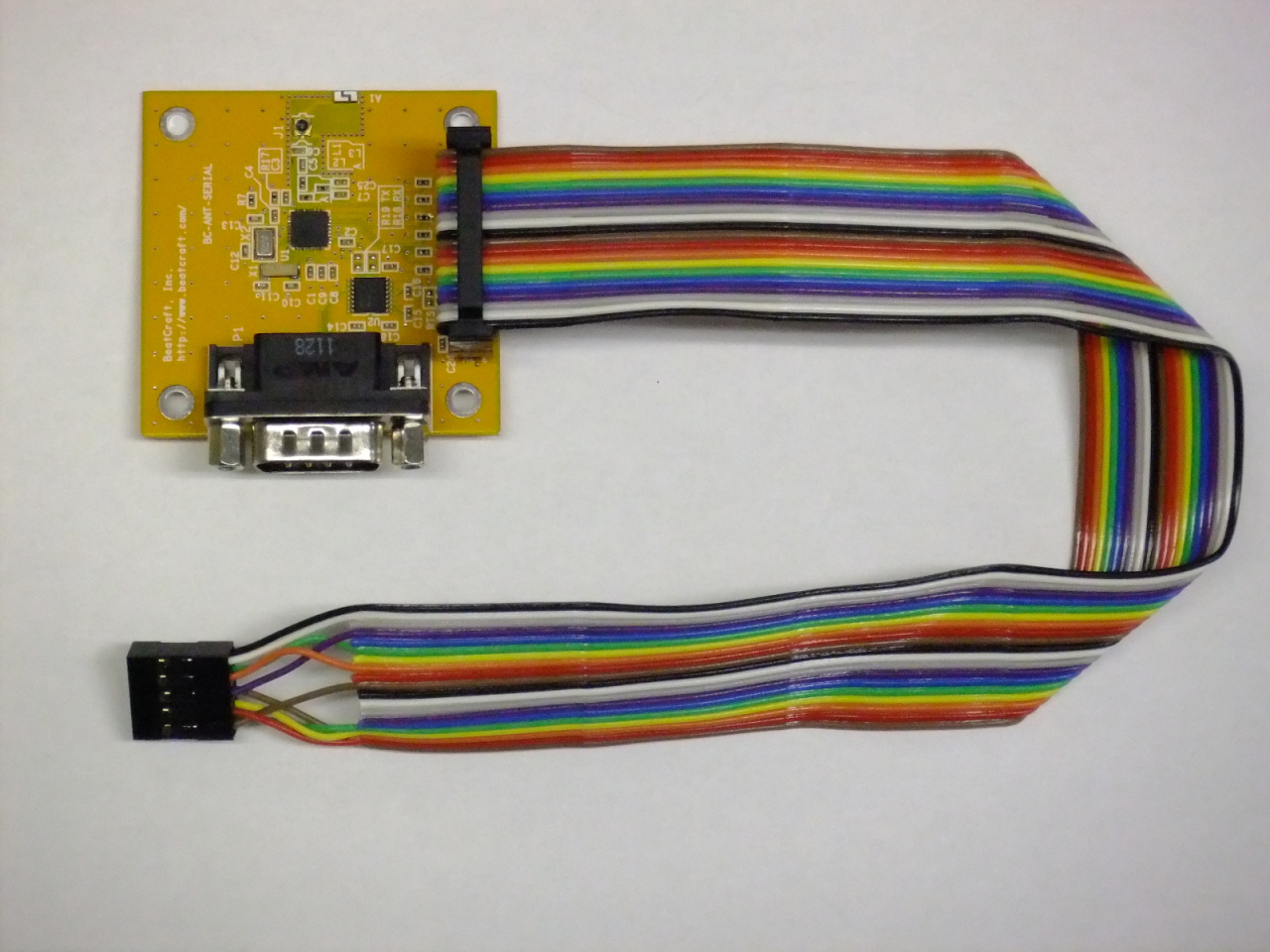

This is an example of a DIY connection cable.

How to Use R232-C

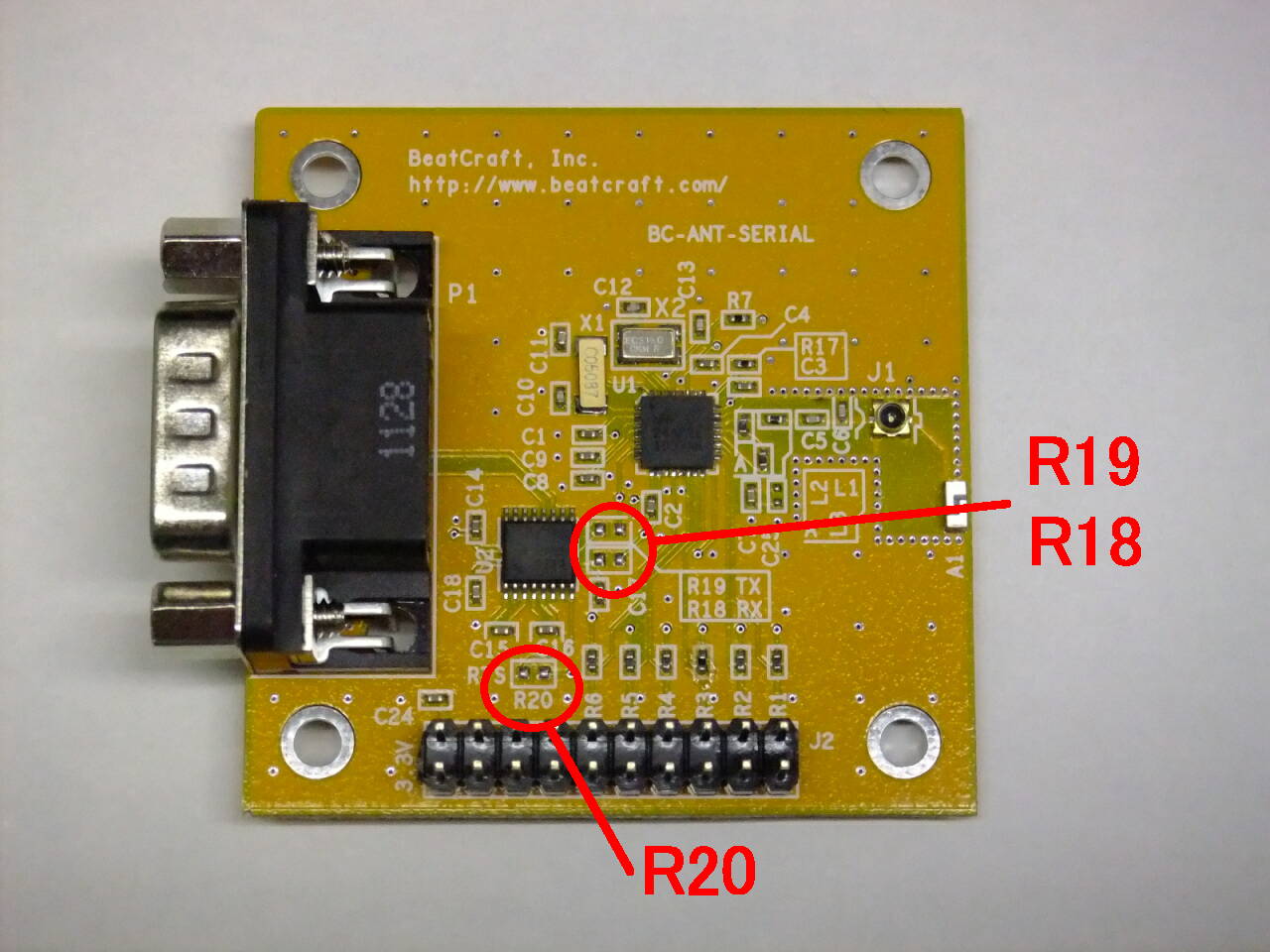

To use R232-C interface, please attach jumper resistors at R18, R19, and R20 on the PCB. The size of jumper resistor is 1608. Please configure the pin assignments of J2 terminal
Table of J2 pin-assignment

NoType of SignalUsing Jumper Resistor
1-2RESETNo
3-4BR2Please look at the next table (table below)
5-6SLEEPYes
7-8BR1Please look at the next table (table below)
9-10BR3Please look at the next table (table below)
11-12SUSPENDNo
13-14RXDNo
15-16TXDNo
17-18RTSNo
19-20VDD19:3.3V, 20:GND

The 19th and 20th pins are attached to an external power supply. The voltage of the external power supply is 3.0 ~ 3.3V. The 19th pin is attached to the + electrode, and the 20th pin is connected with the electrode.

The serial communication is with 8bit length, no parity, 1but-stopbit length, and there is hardware flow. The communication speed is determined by whether each pin of BR1, BR2, and BR3 is attached with the jumper resistor or not. The relationship between the combinations of jumper resistors and speed of communication is shown below.

BR3 (9-10)BR2 (3-4)BR1 (7-8)Speed
YesYesYes4800
YesNoYes19200
YesYesNo38400
YesNoNo50000
NoYesYes1200
NoNoYes2400
NoYesNo9600
NoNoNo57600

[Caution]
AT 57600bps, the internal chip cannot catch up with the speed of communication and may not process all commands. 19200bps or slower is highly recommended.

To connect to a PC, RS-232C terminal (9 pin) and straight type cable should be used.

3. Other Information

  • This module has met the Japanese regulatory standard and received Technical Conformity. You may legally use this module in public.
  • This module cannot be modified and altered since it has received Technical Conformity from the regulatory authority. If it you modifies this module and/or use this module for another purposes than described here, these actions are considered as illegal. Please be careful.
  • If this module produces heat and does not work well, please turn off the module.
  • For father information about this module, please read the manual, a PDF file listed below.
  • Manual fileANT-003-0001A-Manual.pdf
  • Schematic fileBC-ANT-SERIAL_sch.pdf
  • Component Placement Diagram fileBC-ANT-SERIAL_parts.pdf
  • Parts List filepartslist.xls
