This AC adapter does not work with bc10 MP1. This article is solely for bc10ES1 and ES2.

Summary ] [#e5d0a4d4]

This AC adapter does not work with bc10 MP1. This article is solely for bc10ES1 and ES2.

This section shows how to replace a plug of an AC adapter. bc10 requires the EIAJ standard type-1 DC plug (center plus)
for its AC adapter. If the plug of an AC adapter does not come with this type, its plug is needed to be changed. This
explains how to replace the plug.

AC Adapter

Specifications

This AC adapter does not work with bc10 MP1. This article is solely for bc10ES1 and ES2.

  • The specifications of the AC adapter for bc10 are:
    • Plug: EIAJ Type-1 (EIAJ-1) center plus
    • Rated Voltage: DC 5V
    • Rated Current: more than 2A
  • The specifications of the EIAJ standard type-1 DC plug
    • Outer Diameter 2.35 mm
    • Inner Diameter 0.7 mm
    • Shaft Length 9.2 mm

The specifications of the AC adapter are described above. If an existing AC adapter does not have EIAJ-1 center plus, its
plug is easily replaced. The next section shows how to alter the plug.

How to replace AC Adapter

List of Parts

This AC adapter does not work with bc10 MP1. This article is solely for bc10ES1 and ES2.

NameQuantitySpecsURLOthers
AC Adapter1Switching AC to DC power supplyhttp://akizukidenshi.com/catalog/g/gM-01801/
EIAJ1 Plug1EIAJ DC plug Type 1 (Straight)
Heat shrinking tube13mm diameterCut it for adequate length

Instructions

This AC adapter does not work with bc10 MP1. This article is solely for bc10ES1 and ES2.

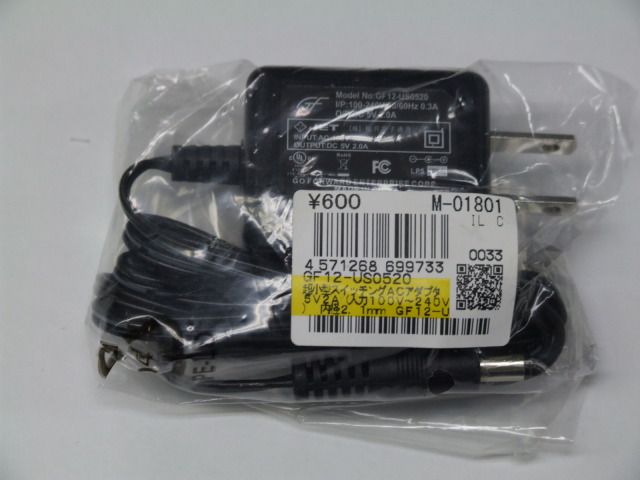

  • AC Adapter
    • DSCF3214.JPG

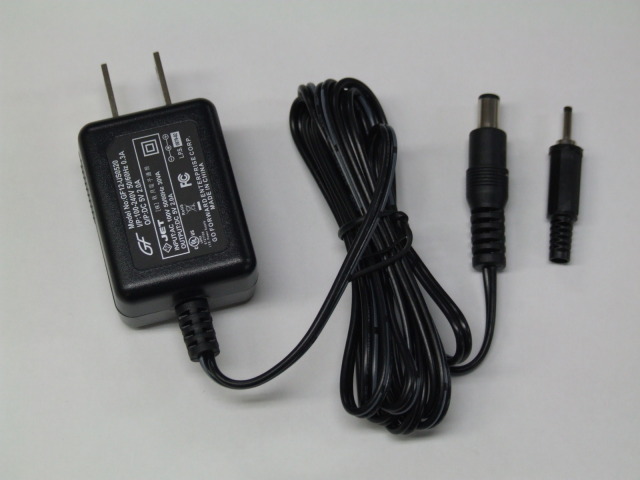

  • AC Adapter and EIAJ1 Plug
    • DSCF3215.JPG
      Remove the original plug from the AC adapter, and replace it with EIAJ1 type, which is adequate for the DC input jack of
      bc10. Twist the strands at the edges of AC adapter's cables, and put the wire through the heat shrinking tube before the
      EIAJ1 plug solders the adapter. To use multimeter, identify the plus side and the minus side, and distinguish one from the
      other. Then, the EIAJ1 plug is solders the cables of the AC adapter.

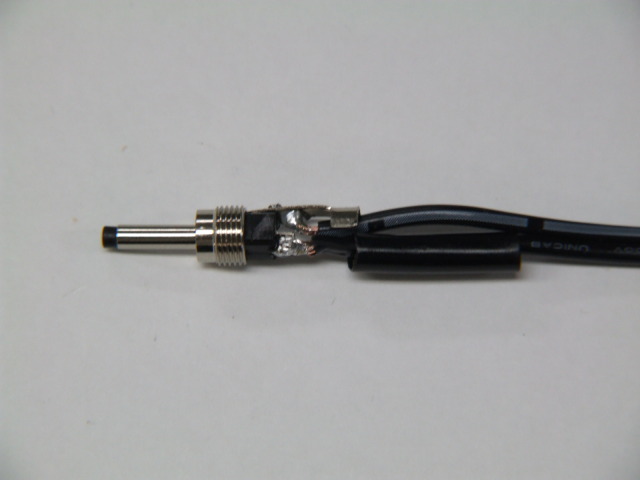

  • After solder the EIAJ1 plug to the adapter
    • DSCF3217.JPG
      To prevent short circuit, put heat shrinking tube over the lower wire's soldered area. This picture is taken before heat
      shrinking tube is put on. The heat shrinking tube covers completely over the soldered area.Then, shrink the tube.

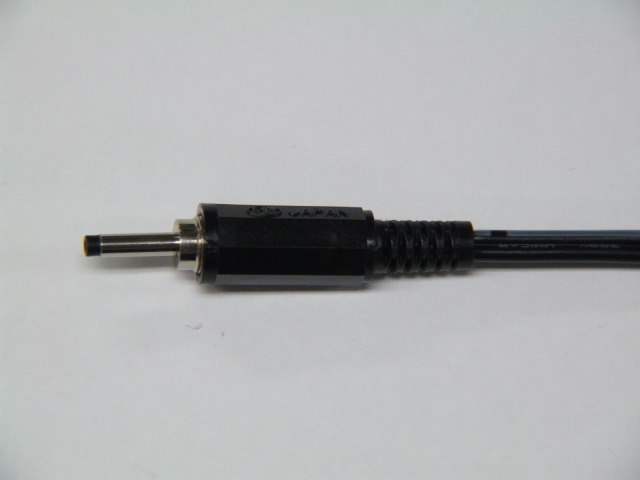

  • Put on the cup
    • DSCF3218.JPG
      Put on the cup, and this is the finished product. The assembly process is completed.

This AC adapter does not work with bc10 MP1. This article is solely for bc10ES1 and ES2.
