bc9

Base Board

  • size: 125mm x 66mm (4.92 x 2.6 inch)
    • Mount hole 4 x φ3.2mm (M3)
  • Connector
    • DC IN (5V2A EIAJ1) x 1
    • USB (TypeA) x 1
    • LINE OUT/Phone OUT(3.5mm mini) x 1
    • LINE IN/MIC IN(3.5mm mini) x 1
    • Serial console (3.5mm mini) x 1
  • Connector for inside
    • gumstix verdex pro x 1
    • TFT LCD colour panel with touch screen x 1
    • Serial for GPS unit (4pin) x 1
    • Li-ion battry (4pin) x 1
    • coin cell (CR2016, 2026, or 2032) x 1
    • Serial console (4pin) x 0 (without connector)

PCB

  • outline

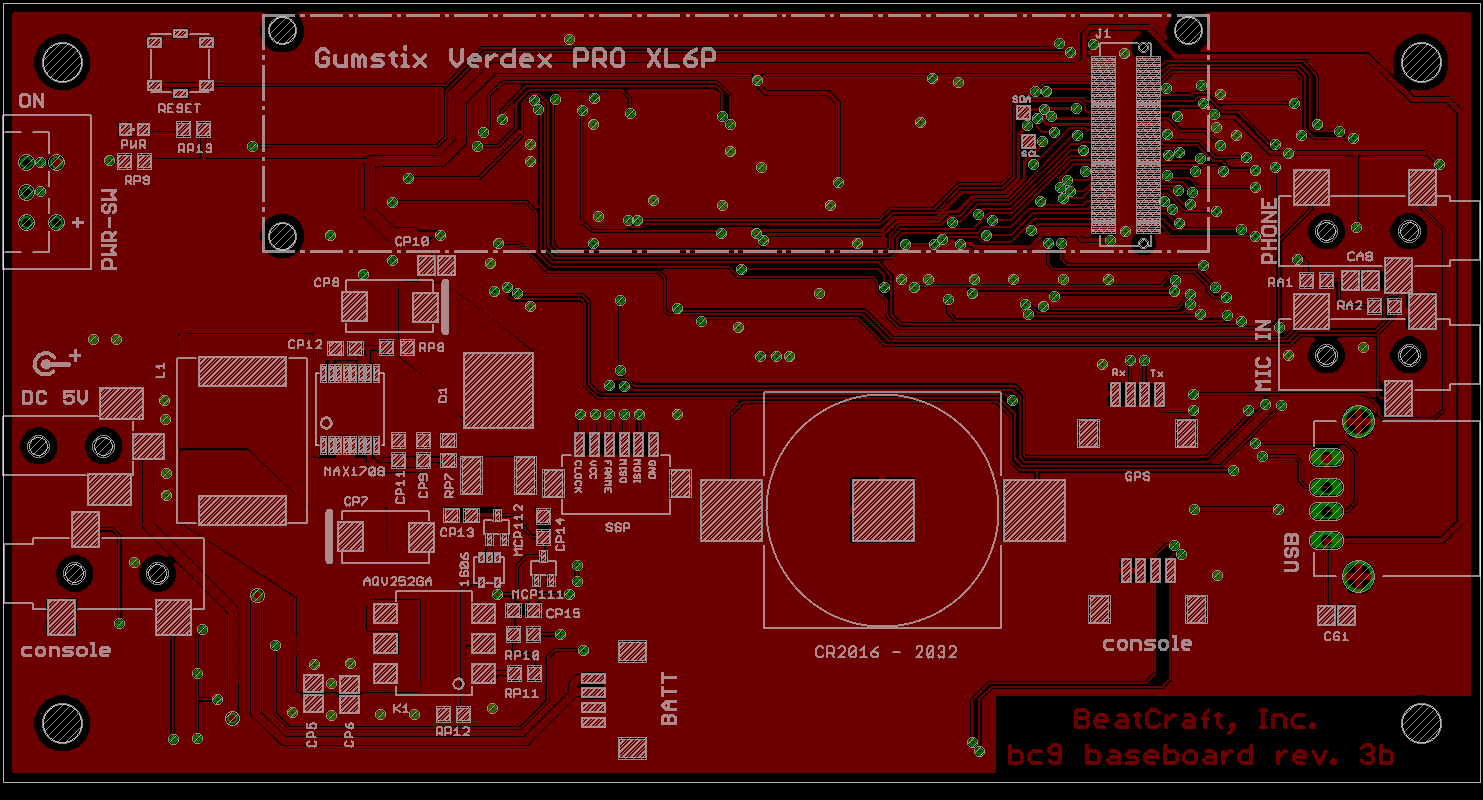

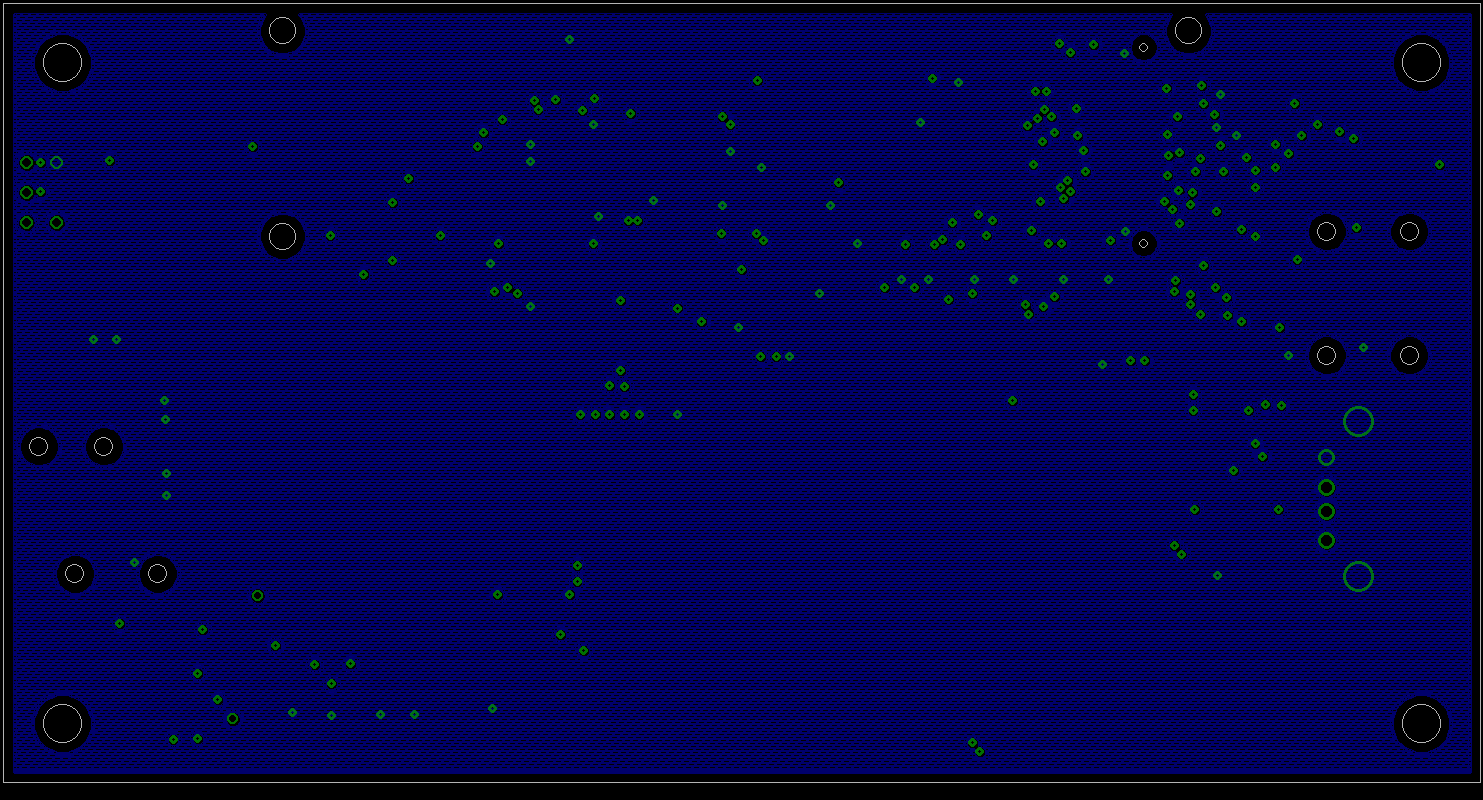

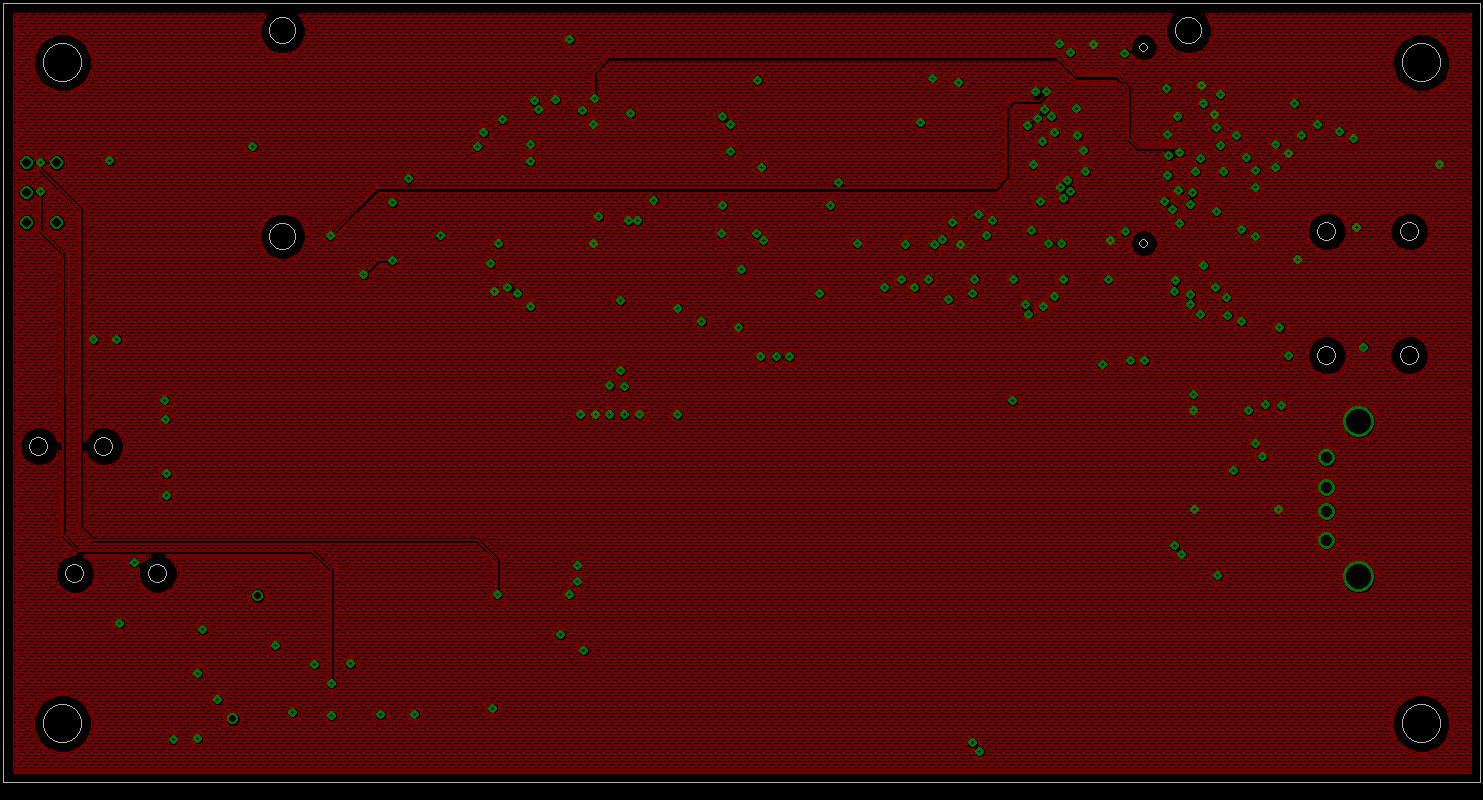

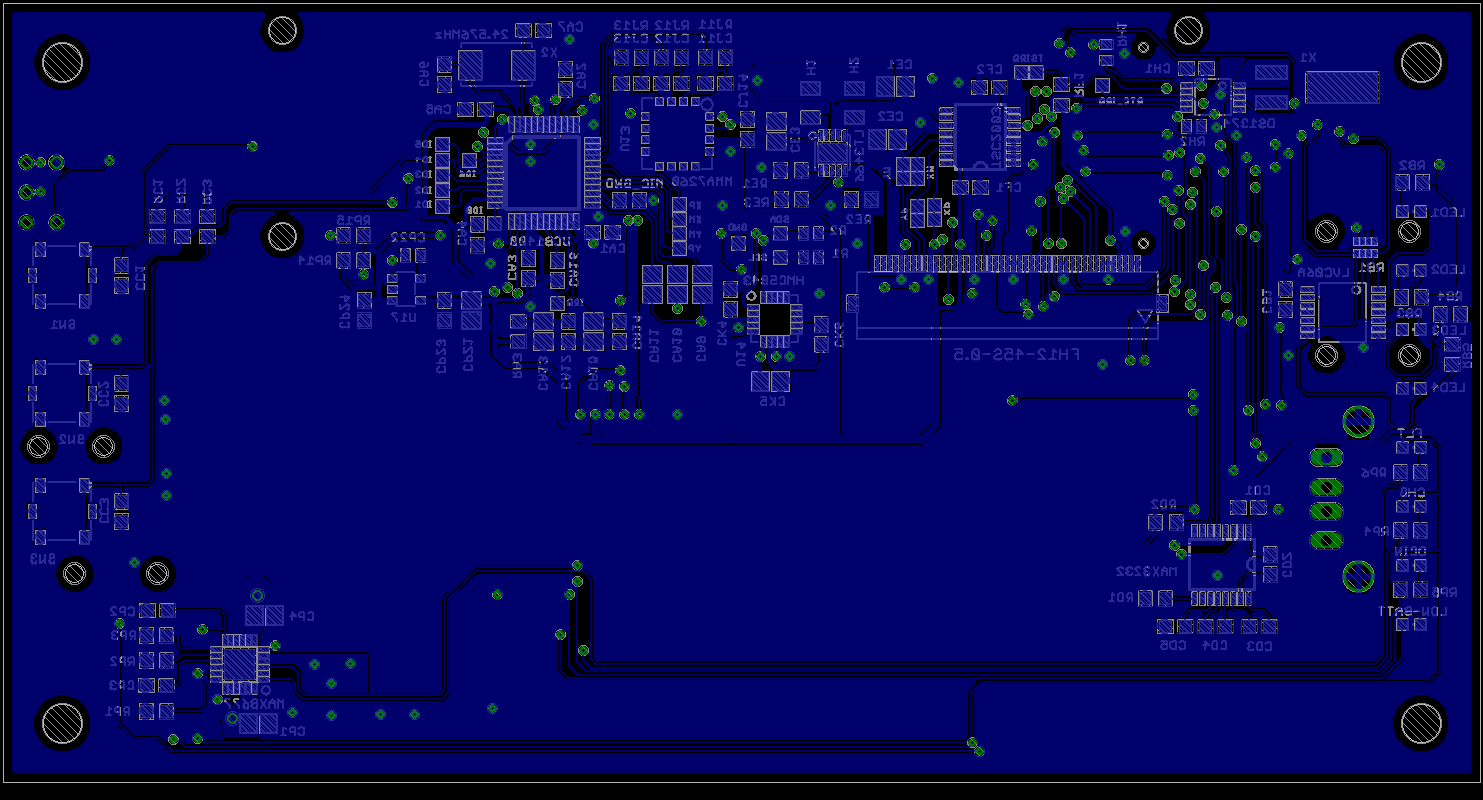

    component sideinner layer2inner layer15solder side
    baseboard_rev3b_top.pngbaseboard_rev3b_l2.pngbaseboard_rev3b_l15.pngbaseboard_rev3b_btm.png
