This is the overview of the hardware of bc10. bc10 is a clone of BeagleBoard, but the size and specifications
of bc10 differ form BeagleBoard's.
These are the pictures of bc10 MP1.
- Main Board Front View
- Main Board Bottom View

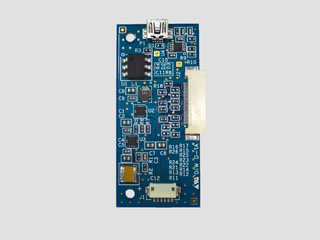

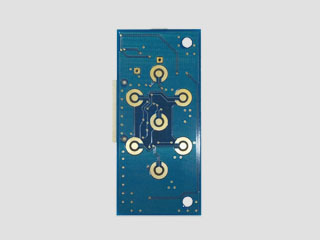

- Extension Board (Left: Front, Right: Bottom)
Size :125(w) x 66(h) mm
Size : 30(w) x 66(h) mm
- Layout of Main Board

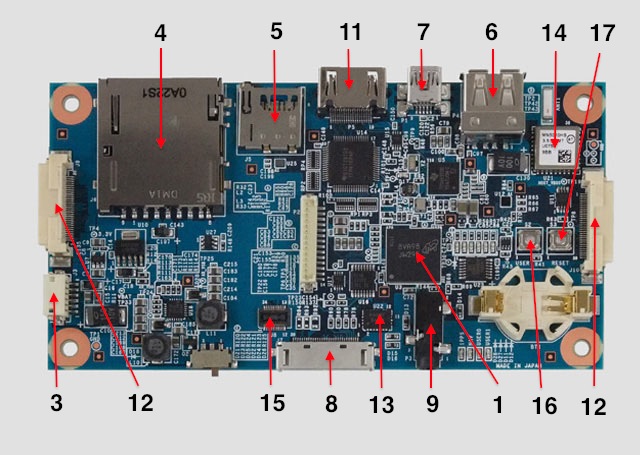

- bc10 MP1 Main Board Front View

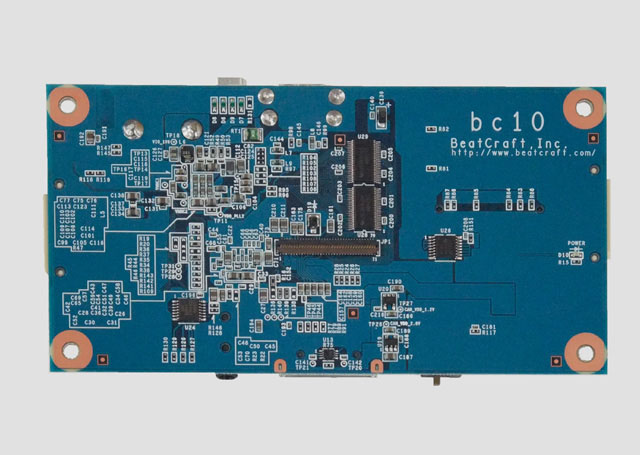

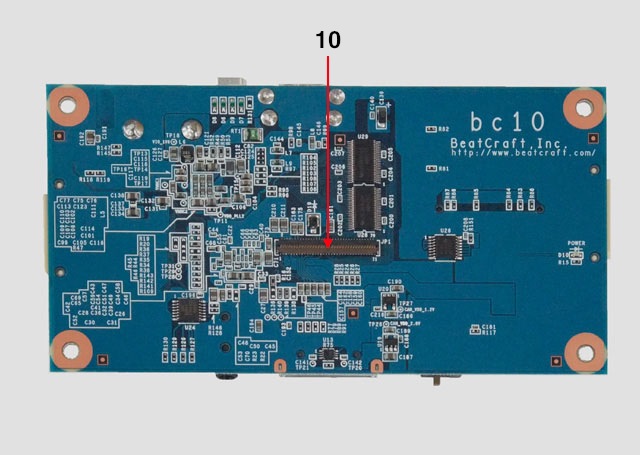

- bc10 MP1 Main Board Bottom View
- Table.1 Main Board Major Parts
CPU 1 OMAP 3530 600MHz (Texas Instruments, Inc) x1 TI ARM Coretex-A8 & C64x Memory Flash ROM/DDR-RAM (512 MBytes /256 MBytes) Package-on-Package (PoP) Compatible Power Supply Support (2) AC Adapter x1 DC 5V (from the included expansion board) 3 Power Supply Connector x1 Connected to the expansion board for energy supply Memory Card 4 SD (SDIO Compatible) x1 5 microSD x1 Interface 6 USB Host 2.0 HS x1 7 USB Client (OTG) x1 8 Serial Console x1 30-pin Connector¹ Audio 8 Stereo Audio Input x1 30-pin Connector¹ 8 Stereo Audio Output x1 30-pin Connector¹ 9 x1 Mini-Jack Display 10 Internal 4.3" wide AMOLED x1 Resolution 480x272 w/ Touchscreen function 11 DVI-D x1 HDMI Connector (Video signal only, no Audio) 8 S-Video/Composite Video x1 30-pin Connector¹ (Exclusive) Slot for Expansion Board² (Receptacle) 12 GPIO x8 1.8V CMOS level (Specific, Not Shared) I²C/SPI/UART1 x2/x1/x1 1.8V CMOS level (Shared) 4x4 Keypad x2 (Specific, Not Shared) Internal Sensor 13 6-axis Motion Sensor x1 3-axis Accelerometer + 3-axis Digital Compass 14 20ch GPS Receiver x1 Internal Chip Antenna Image Sensor 15 x1 CMOS specific Camera Interface Button 16 USER Button x1 17 RESET Button x1 Others N/A LED X6
- On MP1, AC Adapter is moved to the expansion board, which is included in the bc10 set, and
the USB mini B connector on the expansion board is used for power supply.

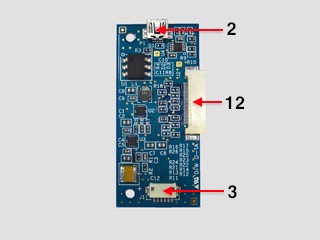

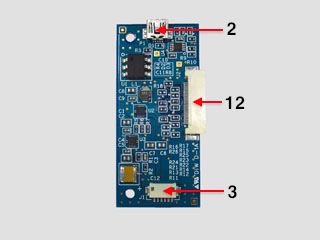

- Layout of Expansion Board
- Expansion Board
- Table.2 Expansion Board Major Parts

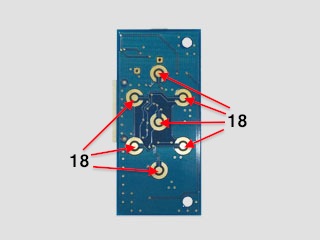

Compatible Power Supply Support 2 USB mini B Connector x1 Power supply only, no communication functions (AC Adapter: 5V & greater than 1A, SANYO eneloop mobile booster (KBC-L2S), both option) 3 Power Supply Connector x1 Connected to Main Board for energy supply Slot for Expansion Board² (Plug) 12 Connector to attach the slot of Main Board (4x4 Keypad) x1 Connected to the right side (from AMOLED) slot for Expansion Board (No.12) Contacting Point for Switch 18 Points of contact x7 Push button style switches are placed on top of these contacting points
- List of signals that 30-pin connector (the picture of Main Board Front View No.8) handles
- Stereo Audio Input
- Stereo Audio Output
- S-Video/Composite Video (Exclusive)
- Serial Console
- Power Switch
- USER Button
- RESET Button
- To handle several output signals simultaneously, use an iPod/iPhone connector, which is differ from commercially
available iPod/iPhone accessories. Wire the specified pins through the connector. To control the power switch and
reset button of bc10 externally through the 30-pin connector, please make sure that the switch at bc10 turns off.
This is a two-part example, which shows how to connect serial console and how to control external RESET and USER
buttons, and power switch simultaneously. The example is listed here (making a serial interface) and here (adding
external buttons and power switch to the interface).
- Caution: all 30-pin connecters are neither identical nor compatible. Commercially available iPod/iPhone accessories
should not be connected with this 30-pin connector of bc10 in general. It is true that some accessory may work with
the 30-pin connector as some pins and functions are for bc10, but it is very seldom and requires a lot of homework
before connecting the two products. Do not connect the accessories which employ the function of Firewire, these
accessories may damage bc10.
- List of signals, which both slots (the picture of Front View #12) deal with
- GPIO
- Keypad
- UART1
- I²C (2ch)
- SPI (1ch)
- The signals of GPIO and keypad are not shared between the right and left slots. The right and left sides of these ports
are designed to be independent from each other. Other output signals are share between the right and left slots.- Slots for Expansion Board output the signals at 1.8V CMOS level. If a board connect with the slot at other than 1.8V,
it requires a logic voltage level converter to adjust voltage.
OrCAD format PDF format Main Board bc10-001-0003.dsn
Expansion Board PDF files are for reference.
PCB Editor format RS274 format PDF format Main Board Expansion Board PDF files are used for reference. PDF files include the layout data of the boards.
The location of each key of the keypad is defined in
The shape of the contacting point of key is identical to this dome-shape switch (B3D-5112). Please use B3D-5112's
technical website for a reference.
Main Board Expansion Board The BOM data is loosely translated into English. The translated data provides enough description of parts used in bc10.
- 2010/07/15 This article is initially uploaded.
- 2010/09/24 Pictures of ES1 are replaced with MP1, and the information of parts is updated.
- 2010/10/05 Pictures and information of the extension board are added.
- 2010/10/21 Design data of Main and Expansion Boards are added.
- 2010/10/28 The Japanese comments on the BOM data are loosely translated into English.
- 2010/11/15 The layout of the keypad and the information of the contacting point are added.
