“BCA_Lib” is a library, which uses with BC-ANT-USB. This library makes the configuration of ANT communication simple. For more information of ANT protocol, please look at ANT's community page, “thisisant.com.” The details of BC-ANT-USB is listed on ANT/BC-ANT-USB of BC::labs.
The class reference of BCA_lib is published on this page.
The major features of this library are listed below.
- Open/close ANT devices
- Receive data/events
- Transmit data
- Pairing process
- The size of transmitting and receiving data is 8byte
The features of API are
- Callback I/F (Interface)
- C++ class I/F (Interface)
There are two types of I/Fs. You may use either one of two I/Fs.
[Caution]
To use this library, 5 files listed below and the driver for BC-ANT-USB are required.
- AntCallbackInterface.h: Callback interface header file.
- AntDevice.h>: C++ class interface header file.
- BCA_Lib.dll: The whole library
- BCA_Lib.lib: Import library
- bc_abstract.dll: A support library developed by BeatCraft, Inc.
BCA_Lib.zip: The details of BCA_Lib (written in HTML format), BC-ANT-USB driver, and sample programs. The details of contents are listed below
- bin: this contains bc_abstract.dll, BCA_Lib.dll, and BCA_Lib.lib. The details are shown above.
- driver: BC-ANT-USB driver
- html: A HTML formatted document, which explains the details of BCA_Lib. (To read this document, please click index.html)
- include: ANTCallbackInterface.h, AntDecice.h, and BCA_Lib.h
- python_sample: Python sample programs, which handle transmitting, receiving, and pairing (receiving side only)
- sample: C++ sample programs, which manage transmitting, receiving, and pairing (receiving side only)
[Transmitting side]
Channel Number: 0
Channel Type: 0 (MASTER)
Shared Channel: 0
Device Number: 33
Device Type: 1
Transmission Type: 1
Frequency: 66 (2466MHz: Since 2466-2400 =66)
Channel Period; 4Hz
Example code (transmitting data): this uses the callback interface.
main() {
// Opening an ANT device
dev = BCA_OpenDevice(0);
// Initializing the ANT device
res = BCA_Init(dev);
// Registering the transmitting callback function
BCA_RegisterSendFunc(dev, SendFunc, NULL);
// Opening a channel
res = BCA_OpenChannel(dev, // device context
0, // channel no(0)
BCA_CHANNEL_TYPE_MASTER, // channel type(Master)
BCA_CHANNEL_NOSHARED, // shared channel
33, // device no
1, // device type
1, // trans typs
66, // freq 2466Hz = 2400 + 66
4); // hz
//
// Transmitting...
//
// Closing the channel
BCA_CloseChannel(dev, 0);
// Closing the device
BCA_CloseDevice(dev);
}
/////////////////////////////////////////////////////////////////
// Transmitting Callback Function
/////////////////////////////////////////////////////////////////
void SendFunc(void* cookie, int channel, void* cookie)
{
static unsigned char val = 0;
unsigned char dat[8];
memset(dat, val,8);
val++;
// Processing transmission
// Data is fixed at 8bytes.
BCA_SendData(dev, channel, dat, 8);
}
[Receiving side]
Channel Number: 0
Channel Type: 0 (MASTER)
Shared Channel: 0
Device Number: 33
Device Type: 1
Transmission Type: 0 (Wildcard)
Frequency: 66 (2466MHz: Since 2466-2400 =66)
Channel Period: 4Hz
Example code (receiving data)
main() {
// Opening an ANT device
dev = BCA_OpenDevice();
// Initializing the ANT device
res = BCA_Init(dev);
// Registering the receiving callback function
BCA_RegisterReceiveFunc(dev,ReceiveFunc, NULL);
// Opening a channel
res = BCA_OpenChannel(dev,
0, // channel
BCA_CHANNEL_TYPE_SLAVE, // slave
BCA_CHANNEL_NOSHARED, // shared channel
0, // device no
0, // device type
0, // tarans type
66, // freq
4); // Hz
//
// Receiving...
//
// Closing the channel
BCA_CloseChannel(dev, 0);
// Closing the device
BCA_CloseDevice(dev);
}
/////////////////////////////////////////////////////////////////
// Receiving Callback Function
/////////////////////////////////////////////////////////////////
void ReceiveFunc(void* cookie, int channel, unsigned char evnt, void* data, unsigned int length, void* cookie)
{
unsigned char* dat = (unsigned char*)data;
printf("DATA[%x][%d][%02x][%02x][%02x][%02x][%02x][%02x][%02x][%02x]\n",
evnt,
channel,
dat[0],
dat[1],
dat[2],
dat[3],
dat[4],
dat[5],
dat[6],
dat[7]);
}
[Transmitting#1]
Channel Number: 0
Channel Type: 0 (MASTER)
Device Number: 1234
Frequency: 66 (2466MHz: Since 2466-2400 =66)
Channel Period: 4Hz
[Transmitting#2]
Channel Number: 0
Channel Type: 0 (MASTER)
Device Number: 5678
Frequency: 66 (2466MHz: Since 2466-2400 =66)
Channel Period: 4Hz
[Receiving]
Channel Number: 0
Channel Type: 1 (SLAVE)
Device Number: 0
Frequency: 66 (2466MHz: Since 2466-2400 =66)
Channel Period: 4Hz
Example Code
main() {
// Opening an ANT device
dev = BCA_OpenDevice(0);
// Initializing the ANT device
res = BCA_Init(dev);
// Registering the pairing callback function
BCA_RegisterPairingFunc(dev,PairingFunc, NULL);
// Registering the receiving callback function
BCA_RegisterReceiveFunc(dev,ReceiveFunc, NULL);
// Starting the pairing process
res = BCA_StartPairing(dev,
66, // freq
4, // Hz
10);// Duration of search time of pairing (Sec.)
//
// Process...
//
// Closing the channel
BCA_CloseChannel(dev, 0);
// Closing the device
BCA_CloseDevice(dev);
}
/////////////////////////////////////////////////////////////////
// Pairing Callback Function;
/////////////////////////////////////////////////////////////////
void PairingFunc(void* cookie, int* device, unsigned char count, void* cookie)
{
if (count <= 0) {
// There are no devices
return;
}
int device_no = 0;
int device_type = 0;
int trans_type = 0;
int res = 0;
// Connecting the first device to find
// Obtaining the information of the device
res = BCA_GetPairingDeviceInfo(dev, 0, &device_no, &device_type, &trans_type);
// Opening the channel
res = BCA_OpenChannel(dev,
0, // channel no
BCA_CHANNEL_TYPE_SLAVE, // SLAVE
BCA_CHANNEL_NOSHARED, // no shared
device_no, // device no
device_type, // device type
trans_type, // trans type
66, // 2466MHz
4); // 4Hz
}
The registered (BCA_RegisterPairingFunc()) callback function is executed after the pairing process (BCA_StartPairing()) has been executed and the selected duration of time has passed. The channel information, such as Device ID, of a newly found device is handed over to the function.
As the device, which you like to connect, is selected from the application of UI, the channel is opened (BCA_OpenChannel()).
The device search is performed by all 8 channels, so 8 devices would be found at most.

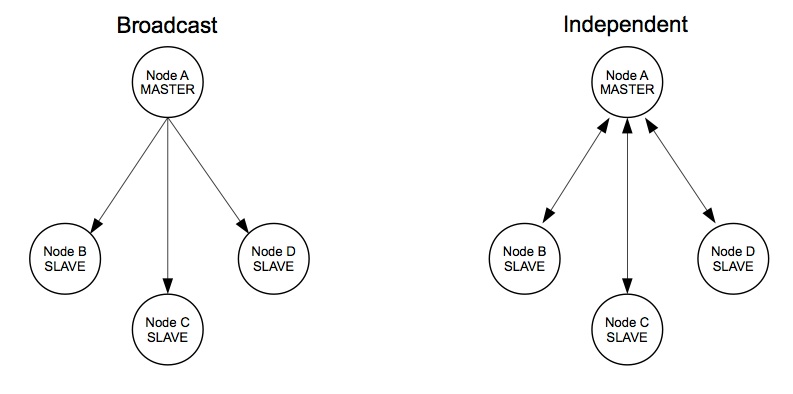

The common connection types of ANT network are 1-to-1 or broadcast connection.
Excluding broadcast, as a master connects to multiple slaves, the master needs to connect to each slave, independently.

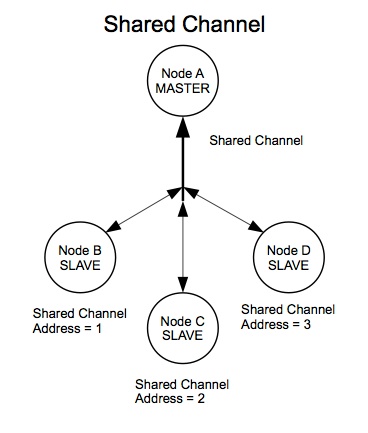

Shard Channel is a way that a single master connects to multiple slaves in one channel.
In Shared Channel, specific shared addresses are configured to all slaves. To add a shared address to a slave, the address consumes 2 bytes, and the total amount of data, which can be sent in one transmission, is reduced to 6 bytes.

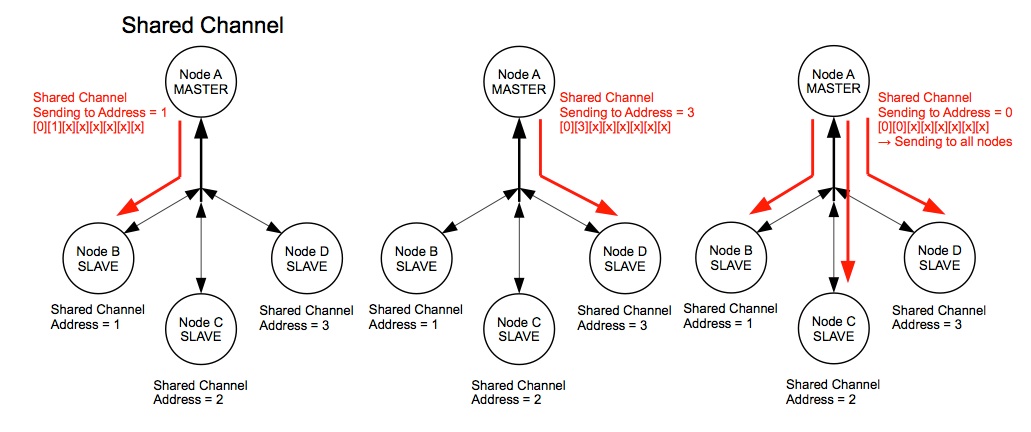

An example of transmitting data
To send data, which includes a specific shared address from a mater, a node, which corresponds to a specific shared address that each slave has sent to the master, receives the data.

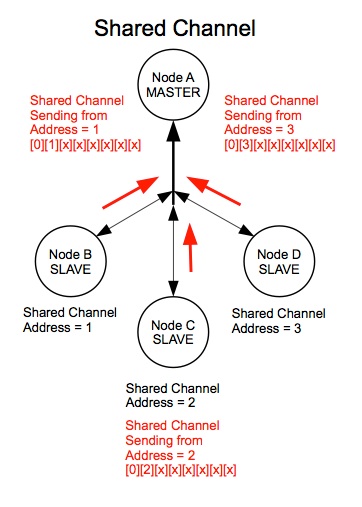

As the nodes start receiving the data, the nodes send back data, whose first 2bytes include own shared addresses, in broadcast.
Notify shared addresses on a shared channel
[Configuration of Node A]
Channel Number 0 Channel Type BCA_CHANNEL_TYPE_MASTER Shared Channel BCA_CHANNEL_SHARED Device Number 33 (the serial number of node A) Device Type 3 (the device type of node A) Transmission Type 3 (2bytes of shared channel address) Frequency 66 (2466MHz: Since 2466-2400 =66) Channel Period 4Hz
[Configuration of Node B, C, and D]
Channel Number 0 Channel Type BCA_CHANNEL_TYPE_SLAVE Shared Channel BCA_CHANNEL_SHARED Device Number 33 (the serial number of node A) Device Type 3 (the device type of node A) Transmission Type 3 (2bytes of shared channel address) Frequency 66 (2466MHz: Since 2466-2400 =66) Channel Period 4Hz
As the slaves (node B, C, and D) has completed opening own channels, they add own shared addresses to the first 2bytes of the data and send back the data in broadcast. Since now on, slaves reply as sending back the data which includes shared addresses at its first 2 bytes. Otherwise, the information of the configured shared address is void.
There are sets of sample code for transmitting, receiving, and pairing (receiving only). One is for C++, and the other is for Python.
- 2013/02/01 This article is initially uploaded
