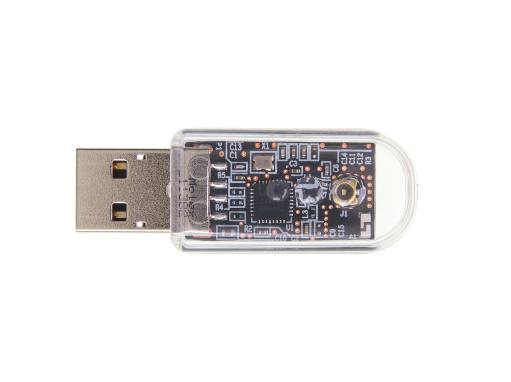

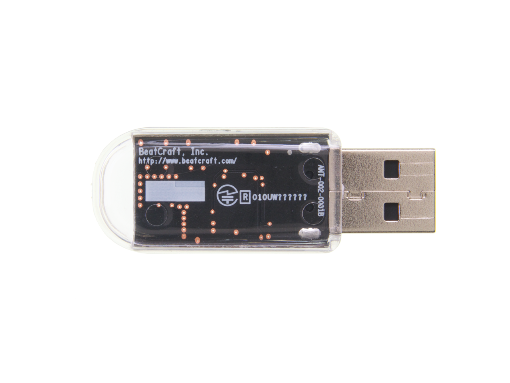

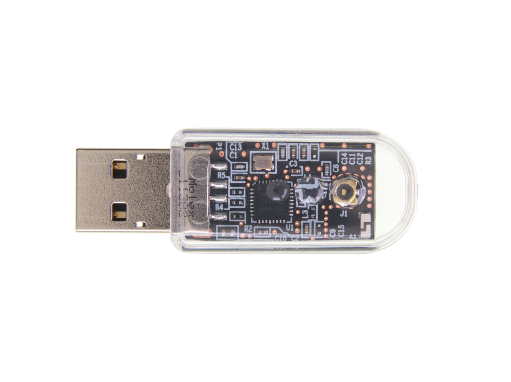

BC-ANT-USB is an USB dongle for ANT communication. This uses the second generation of Nordic Semiconductor's
ANT chip, nRF24AP2-USB and handles USB 2.0 standard.
ANT Chip Nordic Semiconductor: nRF24AP2-USB (details) Size, Weight 4.7 x 1.6 x 0.8 cm, 5.5g Protocol 2.4GHz / ANT Power Source USB Type of USB USB 2.0
the information of ANT, which you may obtain, is published at Dynastream Innovations' ANT/ANT+ specific web
site “This is ANT” (http://thisisant.com).
This is how to obtain ANT software and PDF documents shown below.
- “thoisisant.com” > “DEVELOPER” > “RESOURCES” > “Downloads”
- Select one from “SOFTWARE” and “DOCUMETS” tubs.
- To download the software and PDF documents, you need to registers at the web site. Click “LOG IN”, and
select “Register Now.” Then, provide the information.- The documents for development tools, such as “ANTware II” are located at “SOFTWARE TOOL” part of
“SOFTWARE” section. (Not “DOCUMENTS”)- ANT related PDF documents are listed on “DOCUMETNTS” section.
[Caution]
BC-ANT-USB meet all regulatory requirements. This means that you may use BC-ANT-USB freely without
violating the Japanese Radio Law.
- If you modify or alter BC-ANT-USB, it will be considered a violation of the Radio Law.
- If you make Technical Conformity mark and/or number of BC-ANT-USB unrecognizable and/or unreadable,
it will be considered a violation of the Radio Law.
